WH-C Series Product Features
- microprocessor control,
- digital display inner temperature
- One-timer-molding cistern
- Good insulation performance with stainless steel cover
- with inner cycle
- suitable for thermostatic , baking, dewaxing, sterilization
Specifications
| Model |
WH-4C |
WH-6C |
WH-60C |
| Working size(mm) |
320x320x120 |
460x300x120 |
620x500x200 |
| Power |
1000W |
1500W |
2500W |
| Pump power |
40W |
40W |
60W |
Circulation pump flow
|
≥4L/min |
≥4L/min |
≥4L/min |
| Temperature fluctuation |
±0.1℃ |
±0.1℃ |
±0.5℃ |
| Temperature range |
RT+5 -100℃ |
RT+5 -100℃ |
RT+5 -100℃ |
| Temperature homogeneity |
±0.5℃ |
±0.5℃ |
±0.5℃ |
| Voltage |
110V 60Hz /220V 50Hz |
110V 60Hz /220V 50Hz |
110V 60Hz /220V 50Hz |
| Dimension(mm) |
460x330x240 |
640x330x250 |
700x450x320 |
| Package(mm) |
530x390x280 |
710x390x290 |
800x550x370 |
| G.W/N.W |
9/8kg |
12/11kg |
49/35kg |
ZEN-TW Product Features
- microprocessor control，quickly heating，touch panel control，Simple to operate
- Multi purpose: room temperature to 99℃ , optional function: room temperature to 200 ℃
- One-timer-molding cistern，easy to clean
- LCD display temperature setpoint and temperature measurements, with 0.1 ℃ resolution
- Inside and outside pump cycle,inside circulation ensures temperature uniformity
- The circulating pump can be used as a heating or constant temperature machine to test the outside of the heated liquid in the bath
- with power-off protection,low water level protection and alarm
- With the higher and lower temperature alarm setting function
- with temperature runaway protection and alarm function
- widely used in electronic inspection, chemical reaction, high temperature distillation, semiconductor industry, etc.
Specifications
| Model |
ZEN-TW |
| Inner size |
460x300x200mm |
| Working size |
340x300x200mm |
| Power |
1000W |
| Temperature range |
RT+5--99℃ |
| Temperature accuracy |
±0.5℃ |
| Pump circulation mode |
Inner and outer cycle |
| Pump flow |
8-10L/min |
| Voltage |
110V 60Hz / 220V 50Hz |
| Dimension(mm) |
530x330x430mm |
| Weight |
12kg |
|

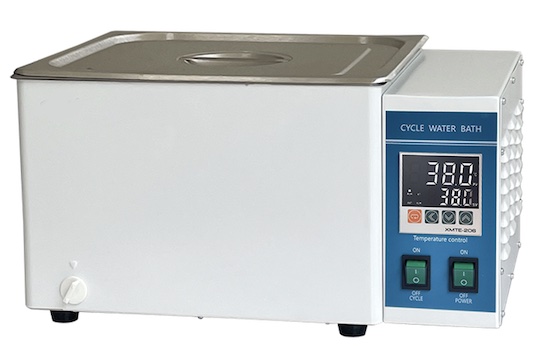

WH-C Series, Inner Cycle

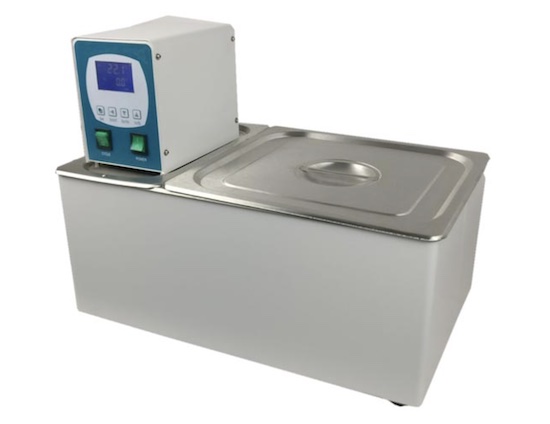

ZEN-TW, Inner and outer cycle
|
