| 1. Usage
Veterinary vascular doppler is used to detect animal vascular information, and can also be combined with a pressure gauge to form veterinary blood pressure system for detecting animal blood pressure in animal hospitals and clinics.
2. Features
- Sensitive special purpose probe

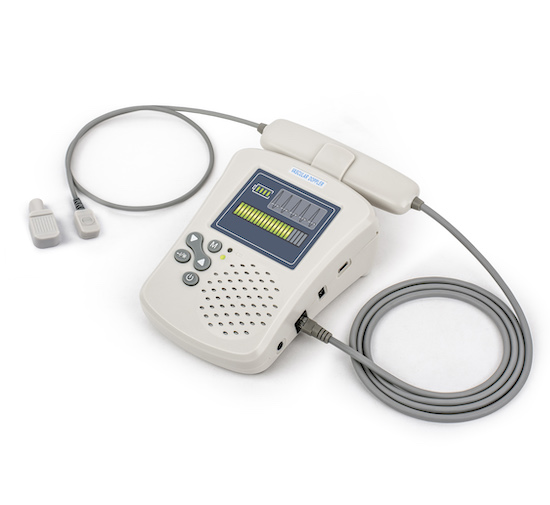

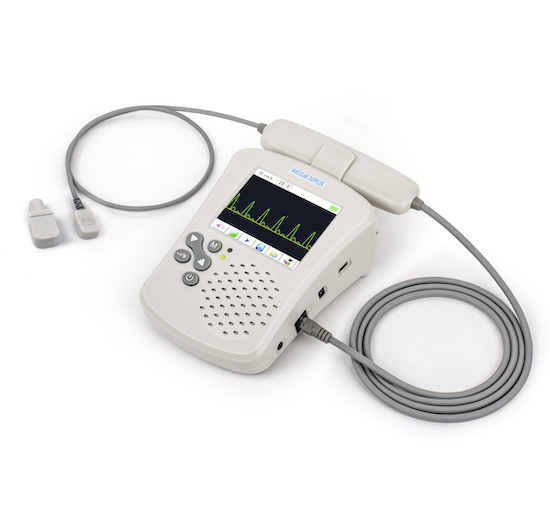

- Display with strength cursor (VVD-310),with colour touch LCD (VVD-320)
- Both of AC and DC battery
- Auto power off
- USB to transmit the data to computer
- Output with loudspeaker and earphone
3. Technical Specification
- Ultrasound frequency: 8MHz
- Ultrasound intensity: <10mW/cm2
- Power supply: 7.4V Li-ion Rechargeable battery
AC 220/110V, 50/60Hz
- Display: 65mm×50mm LCD
- Dimension :130mm ×100mm ×65mm
- Gross weight: About 600g
4. Configuration
- Main body
- Li-ion battery
- 8MHz probe
- Adaptor
5. Option
- Earphone
- Gel
- Carry case
6. VVD-310/320/330 Difference Table
Functions |
VVD-310 |
VVD-320 |
VVD-330 |
Display type |
B/W |
Colour |
Colour |
Display content |
Cursor |
Wave |
Wave+Parameter |
Touch screen |
No |
Yes |
Yes |
Li-ion battery |
Yes |
Yes |
Yes |
Probe detect |
Yes |
Yes |
Yes |
|
