1. Usage
VD-310/320 vascular doppler is used to detect arterial and venous blood flow velocity to assess peripheral vascular disease, feasible in andrology, urology, surgery, surgical, microsurgery, orthopedics, vascular surgery, burns surgery and plastic surgery departments.

2. Features
-  Sensitive special purpose probe

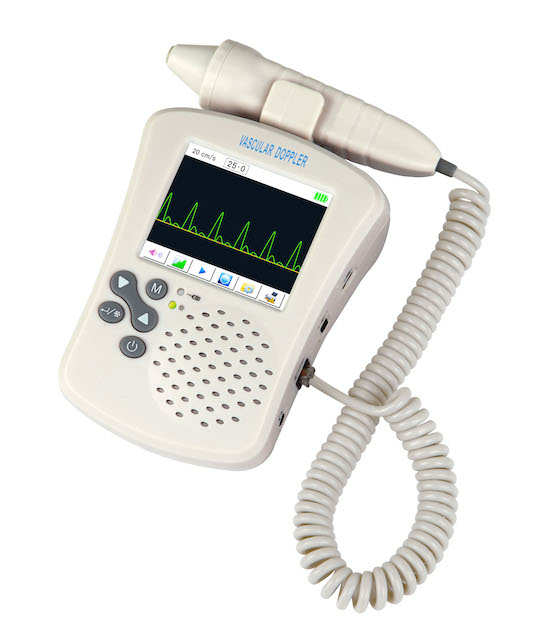

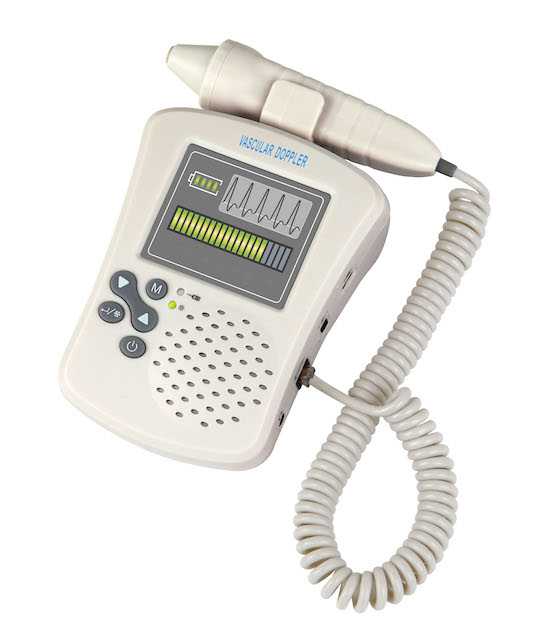

-  Display with strength cursor (VD-310),with colour touch LCD (VD-320)
-  Both of AC and DC battery
-  Auto power off
-  USB to transmit the data to computer
-  Output with loudspeaker and earphone

3. Technical Specification
-  Ultrasound frequency: 8MHz
-  Ultrasound intensity: <10mW/cm2
-  Power supply: 7.4V Li-ion Rechargeable battery
AC 220/110V, 50/60Hz
-  Display: 65mm×50mm LCD
-  Dimension :130mm ×100mm ×65mm
-  Gross weight: About 600g

4. Configuration
-  Main body
-  Li-ion battery
-  8MHz probe
-  Adaptor

5. Option
-  Earphone
-  Gel
-  Carry case

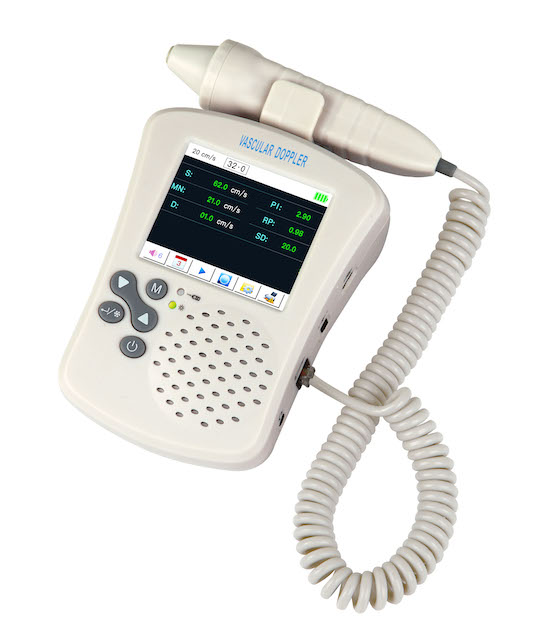

6. VD-310/320/330 Difference Table

	Download Literature:
	VD-310/320/330 Vascular Doppler
