Descriptions:

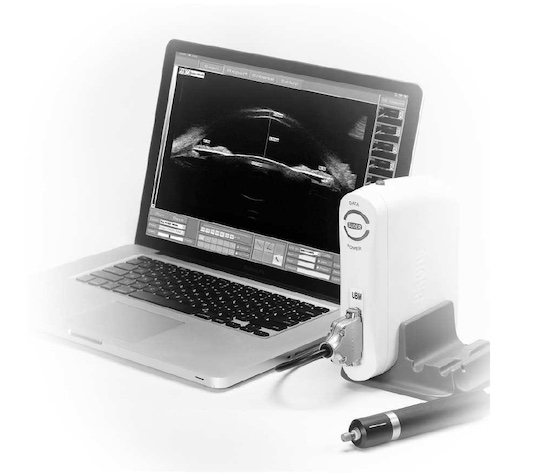

SW-3200S Full Scale UBM is Used for measuring the structure and the diagnosis of anterior segment, including cornea, chamber angle, ciliary body, iris, anterior chamber, double-angle etc. Has been widely used in glaucoma, eye injury and ciliary body disease.
Specifications:
1. Center frequency of the Transducer:50/35 MHz
2. The Sector scanning angle:≥53°
3. Vertical resolution: ≤0.2mm; Lateral resolution: ≤0.4mm
4. Gain:≥105dB
5. The Display window(Width* depth):≥8.25mm*5.5mm(half-Scale Mode),
≥16mm*9mm(Full-Scale Mode)-Optional
6 .Display Delay Depth: The Delay Depth:3mm, when Display range:≥16mm*9mm;
The Delay Depth:6mm,when Display range:≥8.25mm*5.5mm;
7. Geometry location precision: Vertical≤3%, Lateral<3%;No data interpolation, None distortion Imaging
8. Corneal protection: There s have alarm(When the distance is 6mm),
and the Probe auto freezing (When the distance is 4mm)
9. Vertical precision: ≤0.04mm; Lateral precision: ≤0.04mm
10. Mechanic Arm with multi-dimension damping
11. Display mode : UBM. UBM+A
12.System performance: it have a special independent 50um ultrasonic amplification system make the anterior segment image clearer.
| |
