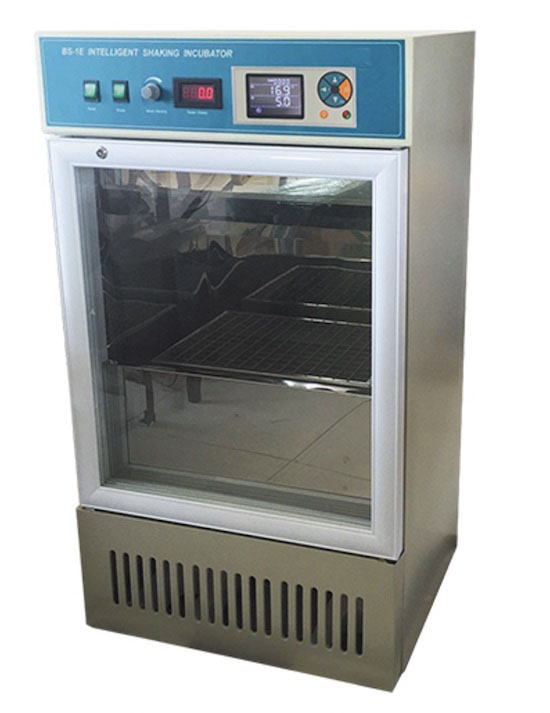

BS-1E, BS-2F
- microprocessor control temperature and timer
- LED display temperature ,speed and timer
- Stainless steel inner, with door lock.
- stepless shaking speed adjustable
- The glass door is convenient for observation.
- The interior lighting is convenient for observation
- over temperature alarm
- automatic alarm after operation
- BOD culture, seed-breeding test
- thermostatic microorganism, plant cultivation
Specifications
| Model |
BS-1E |
BS-2F |
| capacity |
140L |
280L |
| Temperature range |
5-50℃ |
5-50℃ |
| Temperature accuracy |
±1℃ |
±1℃ |
| Shaking speed |
Start up ---300r/min |
Start up---300r/min |
| Amplitude |
20mm(Orbital) |
20mm(Orbital) |
| Shaking groups |
1 |
2 |
| Bottles capacity |
Tube￠16x200,100mlx15,200mlx9 |
(Tube￠16x200,100mlx15,200mlx9)x2 |
| Heating power |
300W |
400W |
| Compressor power |
130W |
180W |
| Timer |
0-9999min |
0-9999min |
| Voltage |
220V 50Hz |
220V 50Hz |
| Dimension(mm) |
570x590x1100 |
1140x600x1100 |
| Package(mm) |
640x700x1310 |
1230x700x1200 |
| G.W./N.W |
90/62kg |
160/110kg |

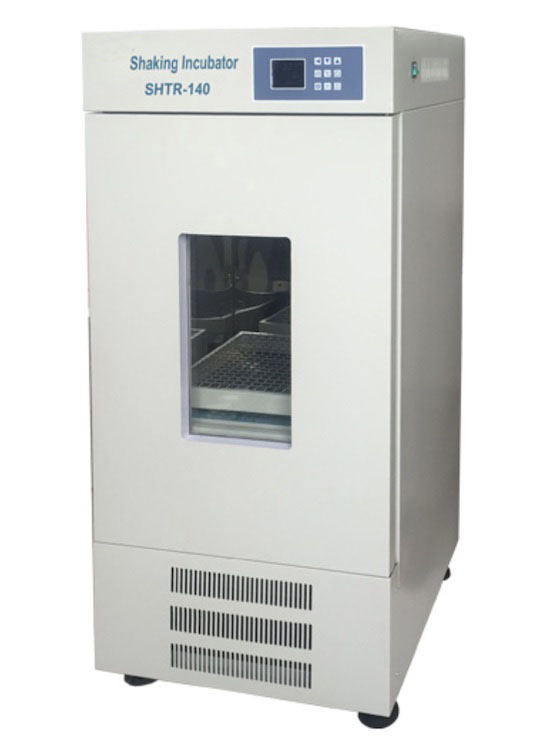

SHTR-140/SHTR-280
- Microprocessor control temperature and timer
- LCD display temperature ,speed and timer
- Stainless steel inner,
- stepless shaking speed adjustable ,brushless motor driver
- The glass window is convenient for observation.
- Over temperature alarm, Finished work alarm
- With power module failure, motor stall, Hall error, bus voltage undervoltage,
overvoltage, communication failure alarm function
- Thermostatic microorganism, plant cultivation
Specifications
| Model |
SHTR-140 |
SHTR-280 |
| capacity |
140L |
280L |
| Temperature range |
4-60℃ |
4-60℃ |
| Temperature accuracy |
±0.5℃ |
±0.5℃ |
| Shaking speed |
Start up ---300 rpm |
Start up---300 rpm |
| Amplitude |
20mm(Orbital) |
20mm(Orbital) |
| Tray size |
Tube￠16x200,100mlx15,200mlx9 |
(Tube￠16x200,100mlx15,200mlx9)x2 |
| Heating power |
300W |
400W |
| Compressor power |
200W |
400W |
| Timer |
0-9999min |
0-9999min |
| Voltage |
220V 50Hz |
220V 50Hz |
| Dimension(mm) |
600x630x1150 |
1180x630x1150 |
| Package(mm) |
700x730x1250 |
1280x730x1250 |
| G.W./N.W. |
105/75kg |
190/135kg |
|
|
