| Features:

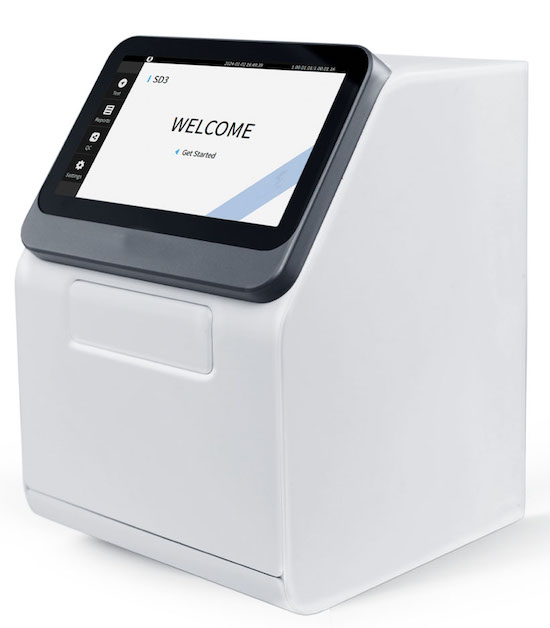

Based on microfluidics technology, the SD3 chemistry analyzer could provide an accurate test result with whole blood, serum, plasma in simple 4-steps operation. The system uses a new patented single-use reagent discs (fan-shaped reagent panels) offering a complete testing flexibility with the most cost-effective way.
Specifications:
Sample Type |
Lithium Heparin Anticoagulant whole blood, serum and plasma |
Sample Volume |
60-100ul |
Bar Code |
Two dimensional QR Code |
Testing Time |
9-12 minutes / 3 samples |
Testing Principle |
Absorption spectroscopy, transmission turbidimetry |
Testing Method |
Endpoint, kinetic, two-point, etc |
Temperature |
37±0.3℃ |
Resolution |
0.001 Abs |
Cross Infection |
0 |
QC & Calibrate |
Automatic and real-time |
Working Condition |
Temperature:10-30℃ Humidity: 30%-70% |
Light Source |
12V/20W, halogen tungsten lamp with lifespan over 2500 hours |
Power Supply |
AC 100V-240V, 50-60Hz |
Power Rating |
120VA |
Display |
Android 7.0 inch 800*480, multi-point capacitive touch screen |
Storage |
500,000 results |
Printer |
Built-in thermal printer |
Connectors |
4 USB ports, 1 LAN port |
Net Weight |
4Kg |
|
|
|
