| Descriptions:

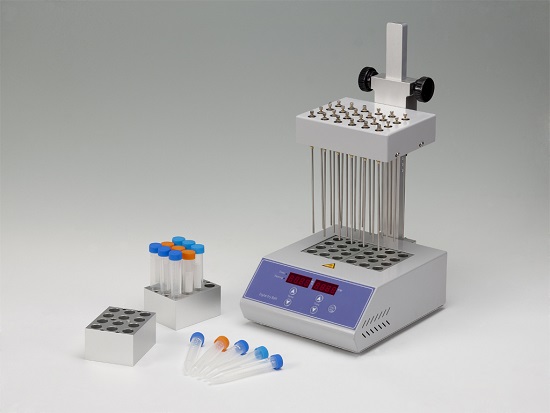

ND200-2 sample concentrator is with microprocessor controlled and PID fuzzy controlled technique. Instead of traditional water bath device, the heat-conducting medium is high purity aluminum. The test tubes are held in a block, blowing a large number of samples at one time. It can be used in residue analysis, commodity inspection, food, environment, pharmacy and biological product and other industries.
Features:
- High precision and wide range of temp. control.
- Blowing a large number of samples at one time.
- Blowing each sample independently.
- Amount of airflow can be adjusted.
- Easy operation; safe and reliable to use.
- 12-month warranty.
Specifications:
Temp. range |
RT. +5 ℃ ~160 ℃ |
Time range |
0min~ 99h59min |
Max pressure |
0.1Mpa |
Nitrogen consumption |
15L/min |
Temp. accuracy |
≤±0.5 ℃ |
Display accuracy |
0.1 ℃ |
Needle length |
150mm |
Standard blocks |
2 |
Temp. uniformity |
≤±0.5 ℃ (@100 ℃ ) |
Temp. Uniformity |
≤±1 ℃ (@150 ℃ ) |
Heating time |
≤30min(from 40 ℃ to 150 ℃ ) |
Max. orbit |
200mm |
Opitional Modules
Model |
Tube Diameter |
Number of Test Tube |
MD50 |
10mm |
12 |
MD51 |
12mm |
12 |
MD52 |
13mm |
12 |
MD53 |
15mm |
12 |
MD54 |
16mm |
12 |
MD55 |
19mm |
12 |
MD56 |
20mm |
12 |
|
|
