| Descriptions:

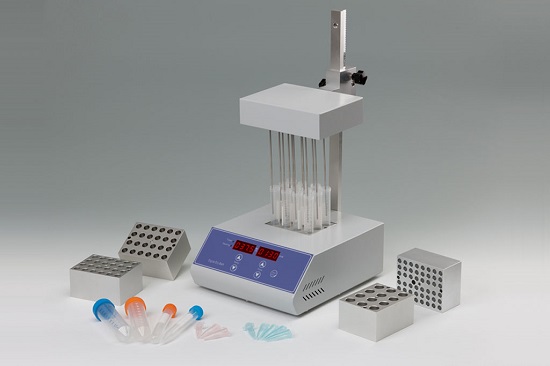

ND100-1 Sample Concentrator is with microprocessor controlled and PID fuzzy controlled technique. Instead of traditional water bath device, the heat-conducting medium is high purity aluminum. The test tubes are held in a block ,and blowing a large number of samples at one time. It can be used in residue analysis, commodity inspection, food, environment, pharmacy and biological product and other industries.
Features:
- High precision and wide range of tamp control.
- Blowing a large number of samples at one time.
- Blowing each sample independently.
- Amount of airflow can be adjusted.
- Easy operation; safe and reliable to use.
- 12-month warranty.
Specifications:
Temp. range |
RT. +5 ℃ ~150 ℃ |
Time range |
1min~ 99h59min |
Max pressure |
0.05Mpa |
Nitrogen consumption |
15L/min |
Temp. accuracy |
≤±0.5 ℃ |
Display accuracy |
0.1 ℃ |
Needle length |
150mm |
Standard blocks |
1 |
Temp. uniformity |
≤±0.5 ℃ (@100 ℃ ) |
Temp. Uniformity |
≤±1 ℃ (@150 ℃ ) |
Heating time |
≤30min(from 40 ℃ to 150 ℃ ) |
Opitional Modules
Model |
Tube Diameter |
Number of Test Tube |
MD03 |
10mm |
24 |
MD04 |
12mm |
24 |
MD05 |
13mm |
24 |
MD06 |
15mm |
16 |
MD07 |
16mm |
16 |
MD08 |
19mm |
12 |
MD09 |
20mm |
12 |
MD10 |
26mm |
8 |
MD11 |
28mm |
4 |
MD12 |
40mm |
3 |
MD15 |
1.5ml |
24 |
MD16 |
2.0ml |
24 |
|
|
