| Feature:

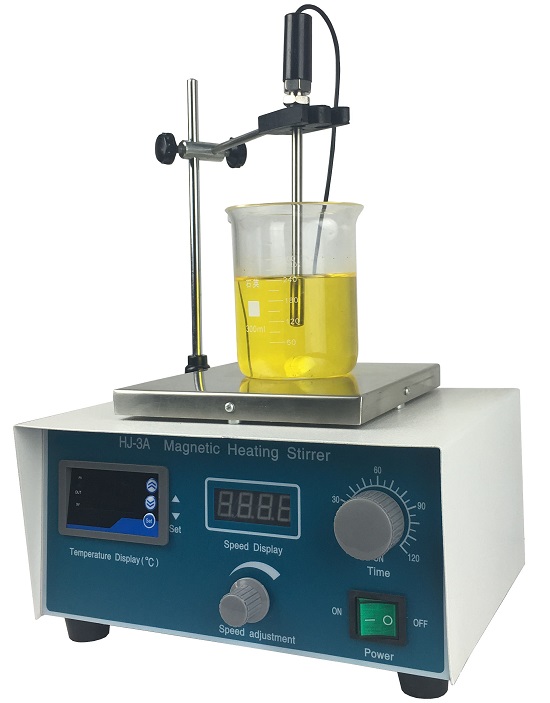

This series stirrers are ideal analysis measurement instruments for heating and stirring liquid, which has the special virtue of auto-controlling constant temperature. It adopts direct current brushless machine, having the characteristics of low crachkling, little mechanical breakdown and steady timing.
Specifications:
Model |
78HW-1 |
HJ-3 |
HJ-3A |
Speed range |
start up ~1600 rpm |
start up ~1600 rpm |
start up ~1600 rpm |
Speed display |
----- |
----- |
Yes |
Stirring power |
25W |
40W |
60W |
Temperature range |
RT+5 ~100 ℃ |
RT+5 ~100 ℃ |
RT+5 ~100 ℃ |
Heating power |
120W |
150W |
250W |
Platform Dimension(mm) |
120mm |
120mm |
165x165mm |
Timer |
----- |
0~120 minutes(or with no limit) |
Capacity |
100~1000ml |
100~1000ml |
100-5000ml |
Voltage |
110V 60Hz/220V 50Hz |
110V 60Hz/220V 50Hz |
110V 60Hz/220V 50Hz |
Dimension(mm) |
225x160x130 |
225x160x130 |
265x210x160 |
Package(mm) |
270x190x145 |
270x190x145 |
330x260x220 |
G.W./N.W. |
2.5/2kg |
2.5/2kg |
6/5kg |
|
|
