Product Features
- microprocessor PID control,
- digital display setting and actual temperature
- Digital display running timer
- PID self-tuning , over temperature alarm
- automatic alarm after operation
- Annular butterfly cover, easy to operate
- High efficiency heat preservation material, small heat loss
- oil bath is widely used for distillation, drying, concentrating and impregnation chemical or biological products
Specifications
| Model |
HH-1 |
HH-2 |
HH-4 |
HH-6 |
HH-8 |
| Capacity |
3L |
6L |
10L |
16L |
22L |
| Working size(mm) |
160x160x120 |
300x160x120 |
300x300x120 |
460x300x120 |
600x300x120 |
| Power |
500W |
1000W |
1500W |
2000W |
2500W |
| Temperature fluctuation |
±0.5℃ |
±0.5℃ |
±1℃ |
±1.5℃ |
±1.5℃ |
| Temperature range |
50-300℃ |
| Temperature homogeneity |
±1℃ |
| Voltage |
110V 60Hz /220V 50Hz |
| Dimension(mm) |
330x230x240 |
470x230x240 |
470x370x240 |
630x370x240 |
770x370x240 |
| Weight |
5.5kg |
8kg |
10kg |
13kg |
16kg |
| Name |
Oil bath for solid manure |
Oil bath |
Cycle oil bath |
| Model |
HH-Y8 |
HH-280 |
602 |
| Working size(mm) |
600x300x120 |
280x280x300 |
400x280x210 |
| Power |
2500W |
2000W |
2000W |
| Temperature range |
RT-300℃ |
RT-300℃ |
RT-300℃ |
| Temperature fluctuation |
±1.5℃ |
±1℃ |
±0.5℃ |
| Temperature homogeneity |
±1.5℃ |
±1℃ |
±0.5℃ |
| Voltage |
110V 60Hz /220V 50Hz |
110V 60Hz /220V 50Hz |
110V 60Hz /220V 50Hz |
| Dimension(mm) |
770x370x360 |
360x360x420 |
480x450x430 |
| Weight |
19kg |
12kg |
18kg |
|

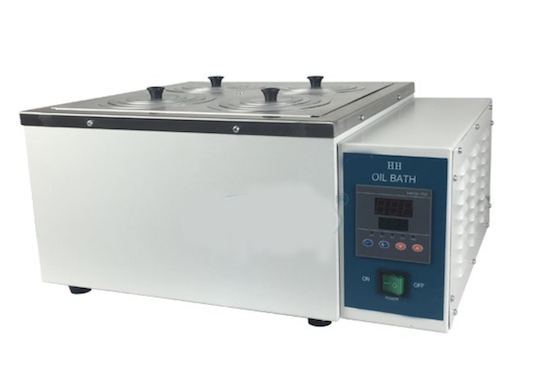

HH-4

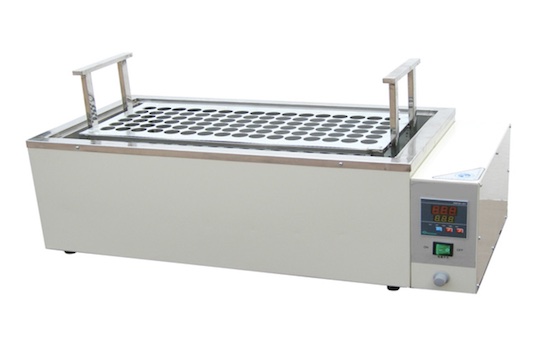

HH-Y8 for solid manure
|
