Product Features:
- Microprocessor control,
- With glass window door,
- Digital display setting and actual temperature
- Digital display running timer
- PID self-tuning, over temperature alarm
- Automatic alarm after operation
- Suitable for drying, baking, dewaxing, sterilization, heat treatment under vacuum conditions
Specifications
| Model |
DZF-6020 |
DZF-6050 |
| Volume |
25L |
50L |
| Working size(mm) |
300x300x275 |
415x375x345 |
| Power |
1000W |
1400W |
| Vacuum pump |
Without |
Without |
| Temperature range |
50~180℃ |
50~200℃ |
| Temperature fluctuation |
±1% |
±1% |
| Vacuum degree |
<133Pa |
<133Pa |
| Timer |
0-999min |
0-999min |
| Voltage |
220V 50Hz |
220V 50Hz |
| Dimension(mm) |
570x460x460 |
710x540x550 |
| Package(mm) |
670x540x570 |
810x620x650 |
| G.W./N.W. |
54/42kg |
76/60kg |
| Model |
DZF-6090 |
DZF-6210 |
| Volume |
90L |
210L |
| Working size(mm) |
450x450x450 |
560x640x600 |
| Power |
1600W |
2160W |
| Vacuum pump |
Yes |
Yes |
| Temperature range |
50~250℃ |
50~250℃ |
| Temperature fluctuation |
±1% |
±1% |
| Vacuum degree |
<133Pa |
<133Pa |
| Timer |
0-999min |
0-999min |
| Voltage |
220V 50Hz |
220V 50Hz |
| Dimension(mm) |
610x670x1430 |
810x720x1590 |
| Package(mm) |
750x740x1580 |
890x840x1680 |
| G.W./N.W. |
163/117kg |
195/140kg
|
|

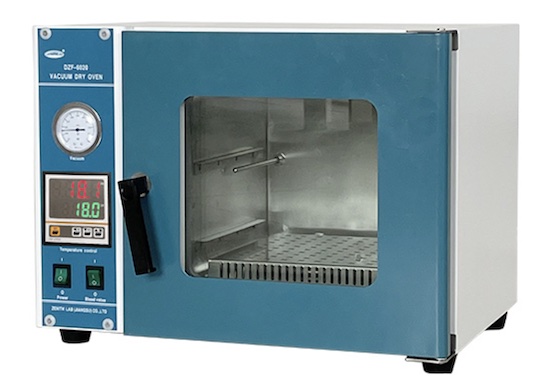

DZF-6020/DZF-6050

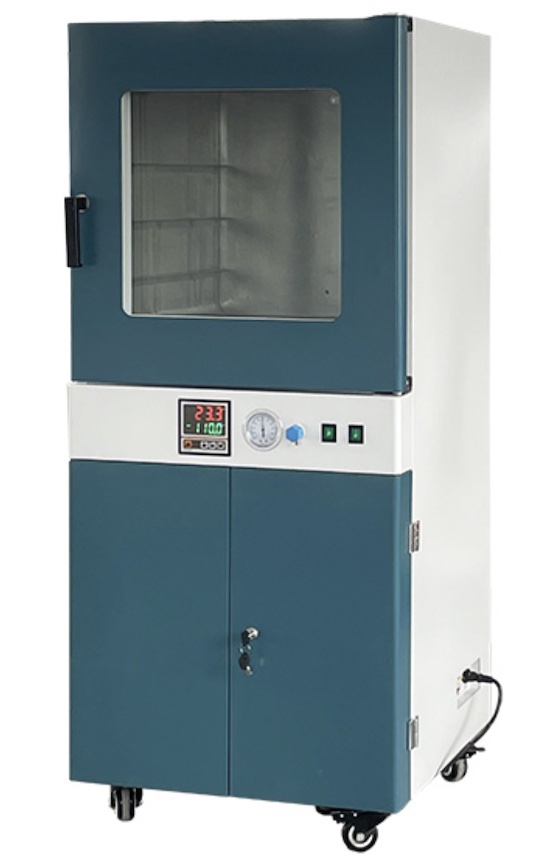

DZF-6090/DZF-6210
|
