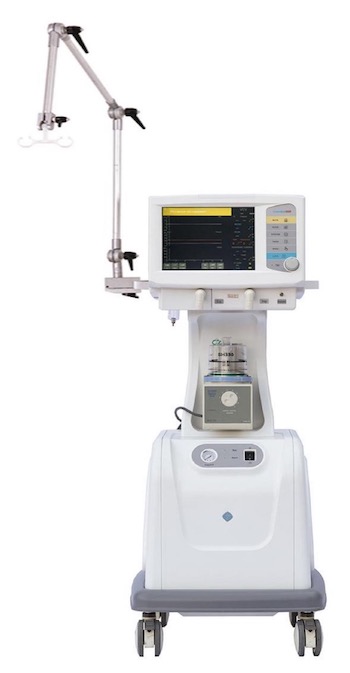

CWH-3010 ICU Ventilator

Standard Configuration:
- Display screen: 12.1 inch touch screen
- Day and night mode change
- Tidal Volume:20-2000ml
- Gas source: O2 or Air,0.28-0.6Mpa
- Applied for Adult, Pediatric
- Ventilation modes: INVASIVE and NON-INVASIVE
Volume Controlled Ventilation(VCV)
Pressure Controlled Ventilation(PCV)
Pressure Supported Ventilation(PSV)
Synchronous Intermittent Mandatory Ventilation(SIMV)
SIMV/Pressure Support (SIMV/PSV)
Continuous Positive Airway Pressure(CPAP)
Bi-level Positive Airway Pressure(BIPAP)
APNEA Ventilation(APNEA)
SIGH Ventilation (SIGH)
Manual Ventilation (Manual)
Standby
- Rispriation rate range: 1-100bpm, 1-40bpm under SIMV
- I:E: 4:1-1:8
- FiO2: 21-100%
- Electrolic PEEP: 0-40cmH2O
- Assistant Nebulization treatment
- Self testing and calibration function
- Design of intelligent flashing alarm indicator(Priority alarm, secondary alarm)
- Waveforms: P-T,F-T,V-T
- Loops: P-V,F-V,F-P
- Auto-wash for exhaust valve
- Auxiliary suction function

Standard Accessories:
- Main unit
- Silicon pipeline with Y connector (for adult)
- Silicon pipeline with Y connector (for child)
- Silicon pipeline for adult:Φ22×600mm
- Breathing circuit water trap
- Test lung
- High pressure O2 hose
- O2 Pressure regulator
- Pipeline Hanger
- Power line(0.6M)
- Power line(4M)
- Fuse TIA
- Fuse T6.3A
- Fuse T10A
- Humidifier SH330
- Oxygen sensor
- Mask
- Compressed air connecting hose
- Filter
- Operation manual
