Usage

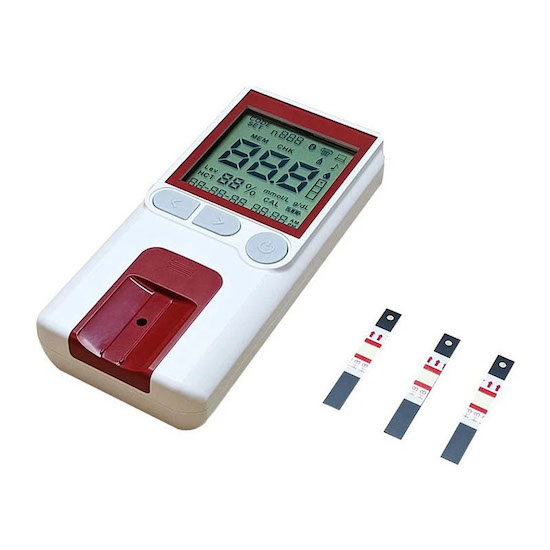

The Hemoglobin Test Meter is intended for the quantitative determination of hemoglobin (Hb) and calculated hematocrit (Hct) in capillary and venous human whole blood. The easy to operate system consists of a portable meter that analyzes the intensity and color of light reflected from the reagent area of a test strip, ensuring quick and accurate results.
The Hemoglobin Test Meter provides results in less than 15 seconds and requires only a single drop of whole blood. The meter can store up to 1,000 results and records can be transferred to a computer for further analysis using the USB port.
Specifications:
Feature |
Specifications |
Methodology |
Reflectance Photometer |
Test Time |
≤15 seconds |
Measurement Range |
HB: 3.0-25.6 g/dL, 30-256 g/L or 1.9-15.9 mmol/L
HCT: 9%-75% |
Sample |
Whole blood (Venous blood and capillary blood) |
Sample Volume |
10 μL |
Power Source |
Batteries: 3 x 1.5 V, AAA(LR03)
Mini USB: 5 VDC, 50 mA, Use Only AC/DC adapter or PC certified and recommended. |
Battery Life |
100 hours or 1,000 tests |
Units of Measure |
g/dL, g/L, mmol/L |
Memory |
1,000 records |
Automatic Shut Off |
8 minutes after last use |
Meter Size |
142 mm × 70 mm × 27 mm |
Display Size |
50 mm × 50 mm |
Weight |
130 g (without batteries) |
Meter Storage Conditions |
0-50℃(32 -122℉); ≤90% RH; height ≤sea-level 2000m |
Operating Conditions |
2-40℃(35.6-104℉); ≤90% RH; height ≤sea-level 2000m |
Analyzer Port |
Mini USB Port for Data Transfer
Printer Port |
Capabilities |
USB Data Transfer Cable (optional) |
Data Transfer |
USB for BC-101 |
|
|
